Raise3D Pro3 Series

Fulfilling the requirements of large-scale production and multi-sized rapid prototyping
Request a quote

A high-quality printer design that includes enhanced features and a smart assistant system known as EVE, all of which make the Pro3 Series dual extruder 3D printers an excellent option for professional 3D printing.

Interchangeable Hot End and Extruder Cover

The Pro3 Series is equipped with an independent modular extruder with a dual extrusion system. This allows the Pro3 Series to print using a variety of filaments, reduce clogging, and allow the convenient disassembly and replacement of components. The hot end of the Pro3 Series is easy to remove, which can be done without using tools, making it simple to replace and maintain. Users can also easily take off the front cover of the extruder to accurately locate common printing occurrences such as filament jams.

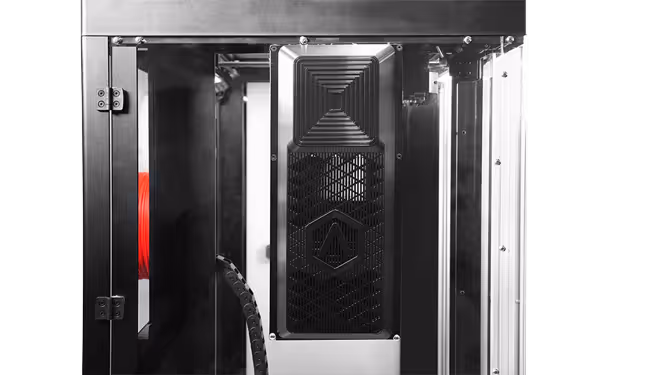

Air Flow Manager for Better Heat Dissipation

The Air Flow Manager of the Pro3 Series is located on the back of the printer, improving heat dissipation and air circulation, creating a stable environment inside the print chamber. Equipped with a HEPA air filter, Air Flow Manager can also filter and clean the air inside the chamber.

Professional Dual Extruder 3D Printers

A dual extruder 3D printer can perform more advanced functions such as producing dual color models and dual material models. A professional dual extruder 3D printer will have additional design features resulting in a higher quality print job.The Pro3 Series professional dual extruder 3D printers have a single-side nozzle lifting technology with fast nozzle switching. Therefore, the nozzles can lift independently and switch within a second, and without being affected by 3D printing material or temperature.
Physical Dimensions

Width         620 cm
Depth         626 cm
Height        760 cm
Weight       56 Kg


Build Volume

Width           300 mm
Depth           300 mm
Height          300 mm

Lightweight Cable with Digital Temperature Measurement
The Pro3 Series replaces the drag chain cable with a lightweight cable, to reduce the weight of the extruder and keep the center of gravity in the middle during printing for more stable print quality.The Pro3 Series also uses digital temperature measurement, for an accurate temperature reading to help prevent jamming.
The importance of Auto Bed Leveling
Bed leveling is the process of confirming that the printing platform is as level as possible. The Pro3 Series has this leveling procedure as an automated function. Auto bed leveling will maintain the distance between the print nozzles and the bed, to create a uniform build area. This improves bed adhesion and allows the nozzle to adjust to even the most minor surface contour changes.
Live Monitoring HD Camera
The Pro3 Series uses a HD camera to monitor the entire 3D printing process of every print job. This camera operates by connecting to RaiseCloud, allowing users to keep track of every print job remotely and while on the move. This ability to check the 3D printing process gives peace of mind. The Pro3 Series also comes with an upgraded CMOS sensor to ensure better image quality.
Power Loss Recovery
Either a power outage or a filament outage (when the filament runs out) can cause a print job to be lost if they occur in the middle of the 3D printing process. However, the Pro3 Series has a filament run-out sensor on its extruders to alert when the filament is about to run out and saves the print job. It also has a second-generation power loss function to save the printing status in the event of a power outage and can continue printing from the same point when power is restored.
The Pro3 Series is compatible with a variety of 3D printing materials (known as filaments) to meet project requirements
Depending on the project goals, more than one 3D printing filament is necessary to accommodate varying structural or functional requirements (for example, some requirements may include flexibility, and strength). Sometimes multiple filaments are required within the same print job. Having a 3D printer that is compatible with different filament types is both cost-saving and practical for print jobs requiring multiple filaments, giving it extra versatility other printers cannot match.
